Description

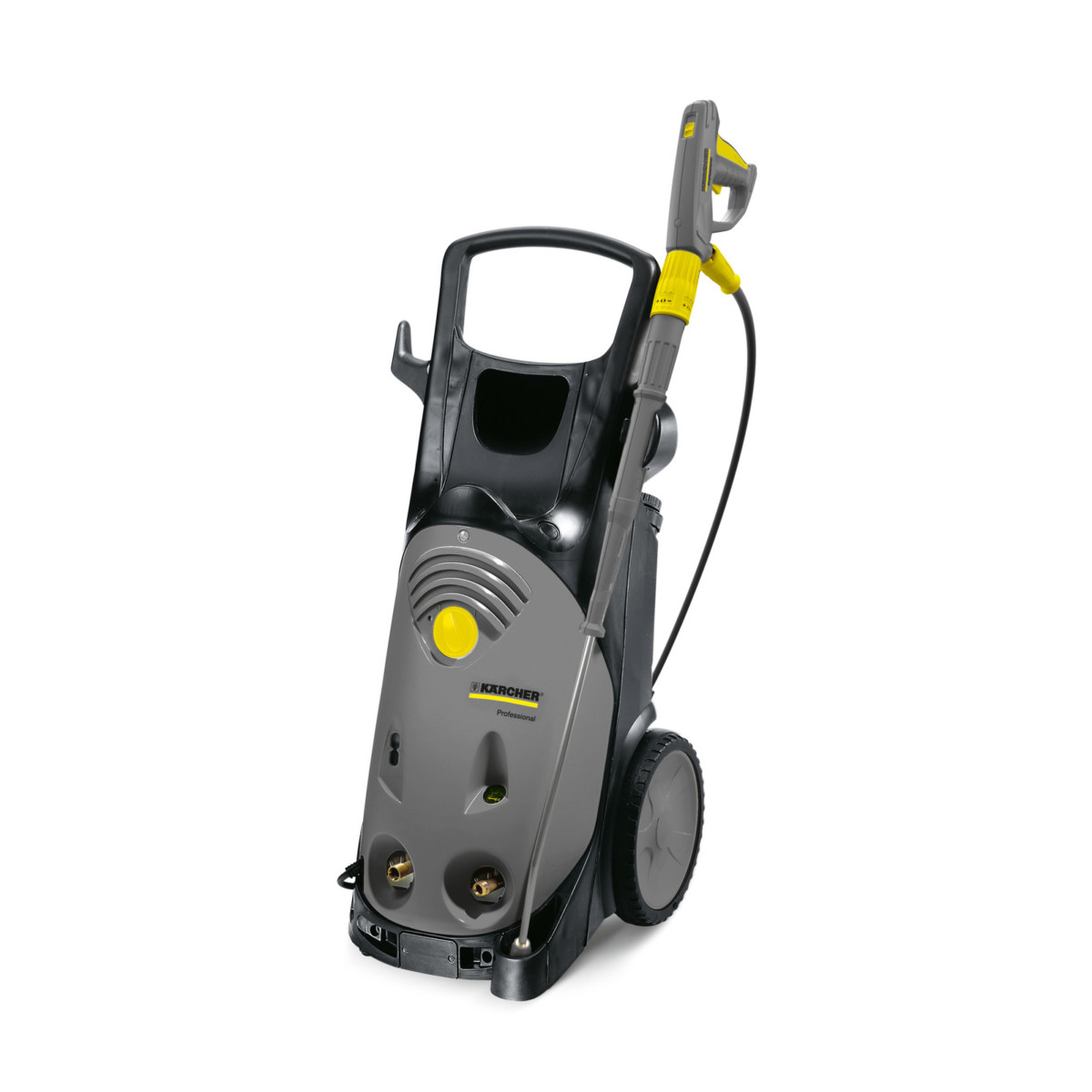

The HD 17/14-4 S Plus is one of the most powerful pressure washers in its class. This 3-phase machine has a 4-pole, long-life water cooled motor, robust 3-piston axial pump with brass cylinder head and ceramic pistons, perfect for tough continuous daily applications. Ideal for daily cleaning of machinery, vehicles and buildings with its very high water flow rate of up to 1,700 litres/hour and pressure of up to 140 bar. Featuring a dirt blaster nozzle, providing even greater cleaning performance for the most difficult cleaning tasks.
Features and benefits
Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.
At last – work without getting tired: the EASY!Force high-pressure gun. EASY!Lock quick-release locks: durable and robust. And five times faster than screws.
Proven Kärcher quality
4-pole water-cooled electric motor. Robust brass cylinder head and ceramic pistons. Reinforced, unbreakable plastic chassis.
For increased safety
Integrated electronics for unit monitoring. Automatic switch-off in case of undervoltage or overvoltage. Switches off in case of leaks or phase failure.
Outstanding mobility
- Large rubber tyres for negotiating uneven surfaces, stairs and landings.
- Proven sack trolley principle for easy, ergonomic transport.
Specifications
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 650 – 1700 |
| Operating pressure (bar/MPa) | 30 / 140 / 3 / 14 |
| Max. pressure (bar/MPa) | 154 / 15.4 |
| Power rating (kW) | 9.4 |
| Weight without accessories (kg) | 72.2 |
| Weight incl. packaging (kg) | 78.2 |
| Dimensions (L x W x H) (mm) | 560 x 500 x 1090 |
Equipment
- Trigger gun, EASY!Force Advanced
- Trigger gun with soft grip
- High-pressure hose, 10 m
- Spray lance, 1050 mm
- Power nozzle
- Dirt Blaster spray lance
- 4-pole three-phase motor with air and water cooling
- Pressure switch control
- Integrated fine mesh water filter
- Electronic motor protection system with LED display
- Oil sight glass
- Servo Control
- Brass water inlet fitting
