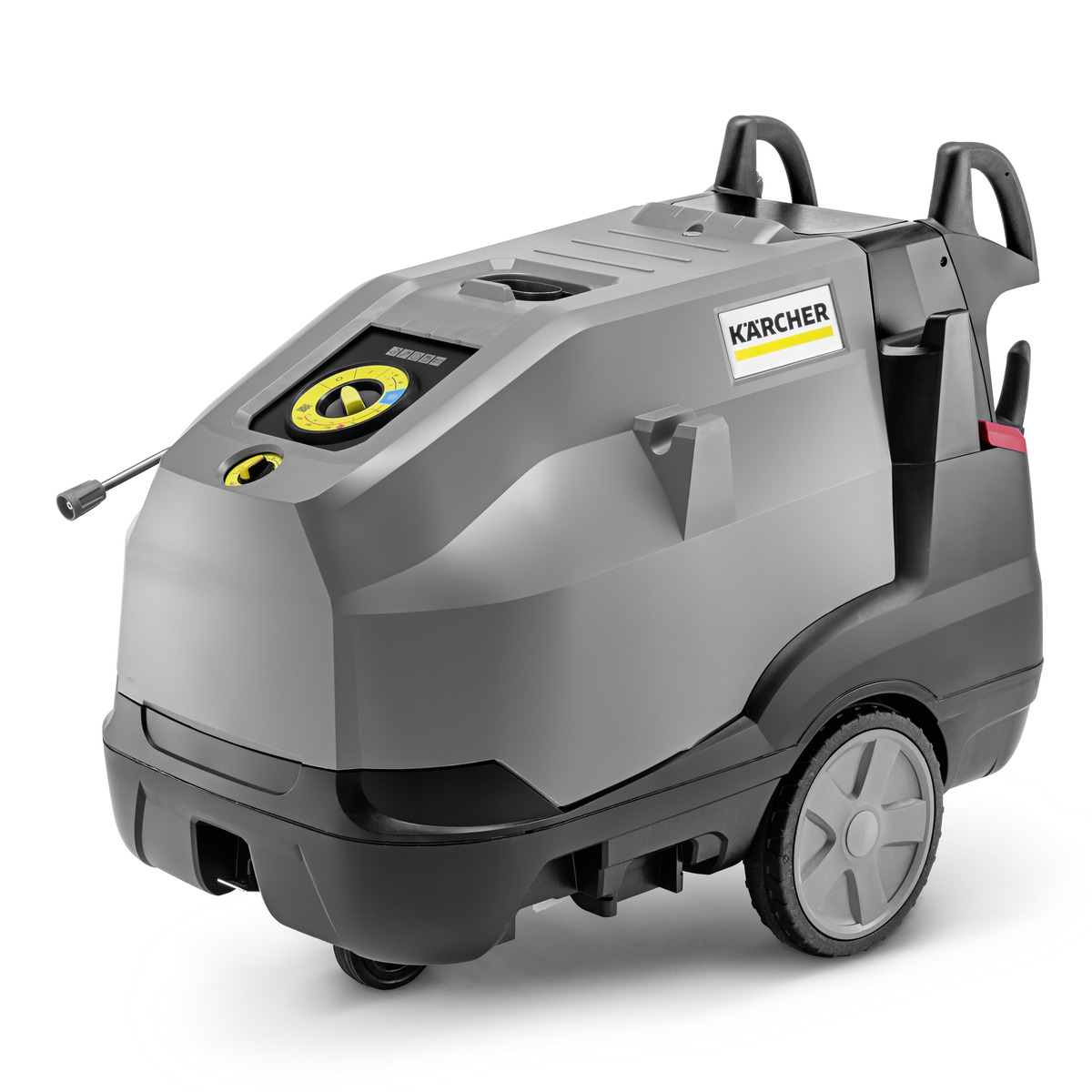

Karcher HDS 7/10-4 M Hot Water Steam Pressure Washer

£3,200.00 Ex VAT

Medium class hot water high-pressure cleaner with a host of user-friendly features.

Please call 01473 636663

SKU: 1077-901 Categories: , , ,
Apply for Finance

Description

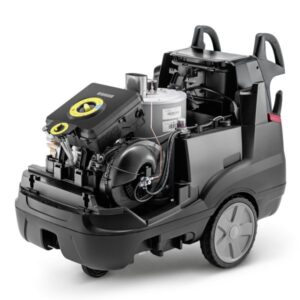

Kärcher’s HDS middle class hot water high-pressure cleaners reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The HDS 7/10-4 M features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs.

Features and benefits

eco!efficiency mode
  • In the Eco setting the unit operates in the most economical temperature range (60°C) with full water flow.
  • Burner cycles are optimised to reduce fuel consumption by up to 20% compared to full-load operation.
Operational reliability
  • The large, integrated fine-mesh water filter reliably protects the high-pressure pump against dirt particles.
  • An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C.
  • The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.
Mobility concept
  • “Jogger” design with large rubber tyre wheels and swivel castors.
  • Sturdy tie-down points for safe transit
  • Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

Technical data

Current type (Ph) 1 – 240 – 50
Flow rate (l/h) 350 – 700
Operating pressure (bar/MPa) 30 – 100 / 3 – 10
Max. temperature (°C) 80 – 155
Power rating (kW) 3.4
Consumption fuel oil (kg/h) 4.6
Power cable (m) 5
Fuel tank (l) 25
Detergent tank (l) 20 / 10
Weight (kg) 146
Dimensions (L x W x H) (mm) 1330 x 750 x 1060

Equipment

  • Trigger gun, Easy-press trigger gun
  • Trigger gun with soft grip
  • High-pressure hose, 10 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Anti-twist system (AVS)
  • Tanks for detergent, scale inhibitor and fuel can be filled from outside

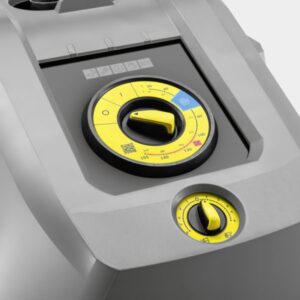

  • Control panel with indicator lamps
  • Three piston axial pump, with ceramic piston
  • Pressure switch control
  • Electronic service control
  • Electronic service control with LED display
  • Two detergent tanks
  • Dry running protection
